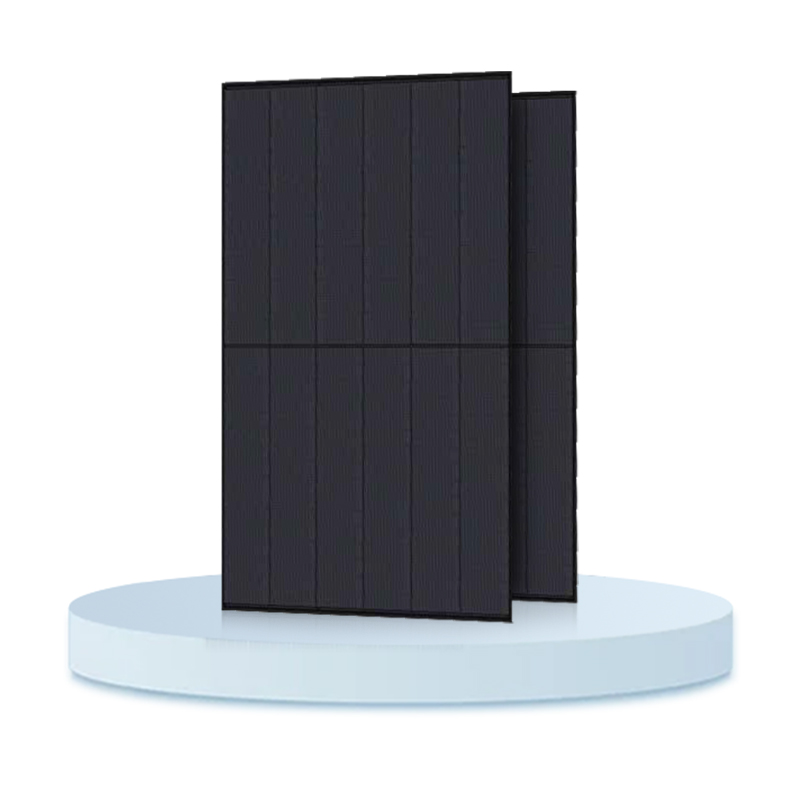

460-485W N-type full black solar module, cells, A grade with 182mm solar cells, TOPCon PV modules, N-type solar panel, photovoltaic module.
N-type solar module is becoming the new trend in the solar industry.
Pago :
30% by T/T in advancePuerto de embarque :
Shanghai or NingboTiempo de espera :
10-15 working days after payments| Module Type | PNGNH48-B8-460 | PNGNH48-B8-465 | PNGNH48-B8-470 | PNGNH48-B8-476 | PNGNH48-B8-480 | PNGNH48-B8-485 |
| Testing Condition | STC | STC | STC | STC | STC | STC |
| Max. Power (Pmax/W) | 460 | 465 | 470 | 475 | 480 | 485 |
| Voltage at Max. Power (Vmp/V) | 30.63 | 30.80 | 30.97 | 31.13 | 31.32 | 31.50 |
| Current at Max. Power (Imp/A) | 15.02 | 15.10 | 15.18 | 15.26 | 15.33 | 15.40 |
| Open circuit voltage(Voc/V) | 35.69 | 35.94 | 36.19 | 36.44 | 36.69 | 36.94 |
| Short Circuit Current (Isc/A) | 15.70 | 15.75 | 15.80 | 15.85 | 15.89 | 15.94 |
| Module Efficiency (%) | 23.02% | 23.27% | 23.52% | 23.77% | 24.02% | 24.27% |
| Power Tolerance (W) | 0~+5 | |||||
Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s
| Cell Type | N-Type MONO |
| No. of Cells | 192 (4×48） |
| Dimension | 1762×1134×30mm |
| Weight | 24.4kg |
| Front/Back Glass |
2.0mm, Anti-reflection Coating/Heat Strengthened Glass
|
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68, 3 diodes |
| Output Cables | 4mm2, Length 300mm or customized |
| Connector type |
MC4 compatible
|
| NOCT Temperature | 44℃ ±2℃ |
| Temperature Coefficient (Pmax) | -0.26%/℃ |
| Temperature Coefficient (Voc) | -0.24%/℃ |
| Temperature Coefficient (Isc) | 0.046%/℃ |
| Maximum system voltage (IEC) | 1500V DC |
| Snow / Wind | 5400Pa/ 2400Pa |
| Operating Temperature | ﹣40℃ ~ +75℃ |
| Maximum series fuse rating | 30A |
| Per Pallet | 37 pcs |
| Per 40'HQ Container | 962pcs |
FAQ:
1: Can the product be shipped to my area?
We export to most countries/regions (Centre/ South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.
2: What's the warranty?
12 years warranty for materials, 25 years linear power output warranty. More detail please refer to our limited warranty statement.
3: How can I make payment?
100% T/T or maximum we can accept 30% T/T in advance and 70% T/T upon goods ready before shipment.
