Módulo solar monoPERC

Hot Sell PNG On-grid Solar System 10KW 20KW 30KW 50KW 100KW Grid-tied Energy Electric Solar Power Panel System

hogar

Sistema solar conectado a la red

Hot Sell PNG On-grid Solar System 10KW 20KW 30KW 50KW 100KW Grid-tied Energy Electric Solar Power Panel System

OEM Factory 50kw on grid solar system

Hot Sell PNG On-grid Solar System 10KW 20KW 30KW 50KW 100KW Grid-tied Energy Electric Solar Power Panel System

Factory customizes 50KW grid-tied solar system with Tier 1 brands solar panels, inverter,structure, cable and accessories.

Widely used for household.





  • Pago :

    30% by T/T in advance

  • Origen del producto :

    Hefei, China

  • Puerto de embarque :

    Shanghai or Ningbo

  • Tiempo de espera :

    30-45 working days
CONSULTA AHORA

Categorías

nuevos productos





Product Description

Model
SE-3KW-ON
SE-5KW-ON
SE-10KW-ON
Half Cut Mono 620W Solar Panel
5 Pieces
8 Pieces
16 Pieces
DC Disconnect Switch
1 Piece
2 Pieces
3 Pieces
On Grid Solar Inverter
S6-GR1P3K
S6-GR1P5K
Solis-1P10K-4G
DC Cable 4mm2
100 meter
200 meter
400 meter
AC Disconnect Switch
1 Piece
1 Piece
1 Piece
MC4 Connector
10 Pairs
10 Pairs
10 Pairs
Mounting System
Customized Product Based On Installation Roof/Ground
PV Installation Tools
1 Set
Model
SE-20KW-ON
SE-30KW-ON
SE-50KW-ON
Half Cut Mono 620W Solar Panel
32 Pieces
48 Pieces
80 Pieces
DC Disconnect Switch
4 Pieces
8 Pieces
15 Pieces
On Grid Solar Inverter
Solis-3P20K-4G
Solis-3P15K-4G
2 Pieces
Solis-1P10K-4G
5 Pieces
DC Cable 4mm2
600 meter
800 meter
1000 meter
AC Disconnect Switch
1 Piece
2 Piece
5 Piece
MC4 Connector
20 Pairs
30 Pairs
50 Pairs
Mounting System
Customized Product Based On Installation Roof/Ground
PV Installation Tools
1 Set


Products Details

Photovoltaic Module

* Tier 1 brand original TW solar /Astronergy/ Jinko/ JA / Longi and etc 590-740W solar panels



* 100% A+ grade with positive tolerance.



* IEC61215/IEC61730

/ISO9001/ISO14001/ISO45001

/MCS/FIDE/ RETIE certifications and etc.



* N type mono-facial or bifacial available.



* PID-Free, Anti-salt mist corrosion and Anti-Amonia .



* 12 years materials and processing warranty, 25years 80% power output warranty.

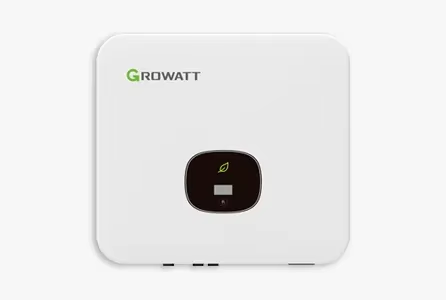

On-grid Inverter

* 5 years standard warranty

* Support Working in Parallel

* Max.Efficiency 99.6%

* Integrated DC switch for added safety protection

* With WIFI Monitoring Device

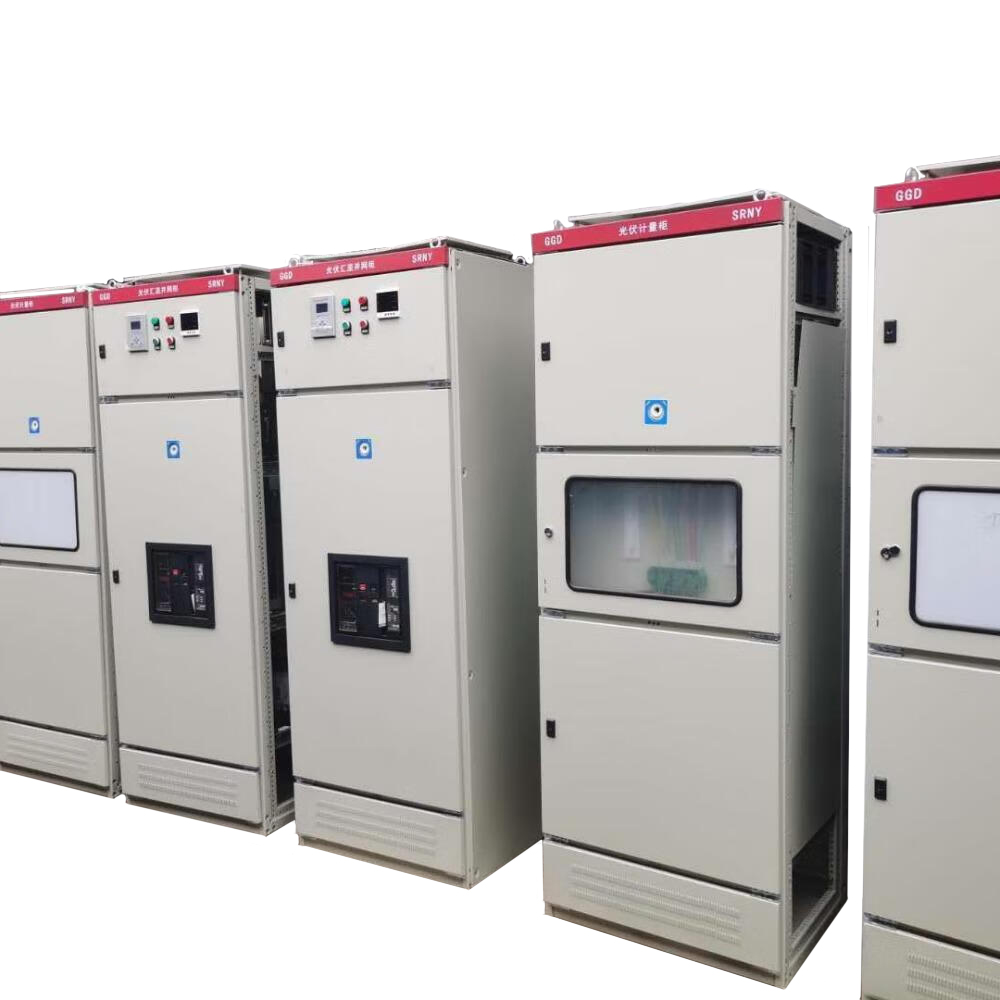

Grid-connected Cabinet
* Breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box

* Lightening protection, short-circuit protection, over-current protection

* Earth-leakage protection and anti-islanding protection

* Customized based on actual needs

* 5 years warranty

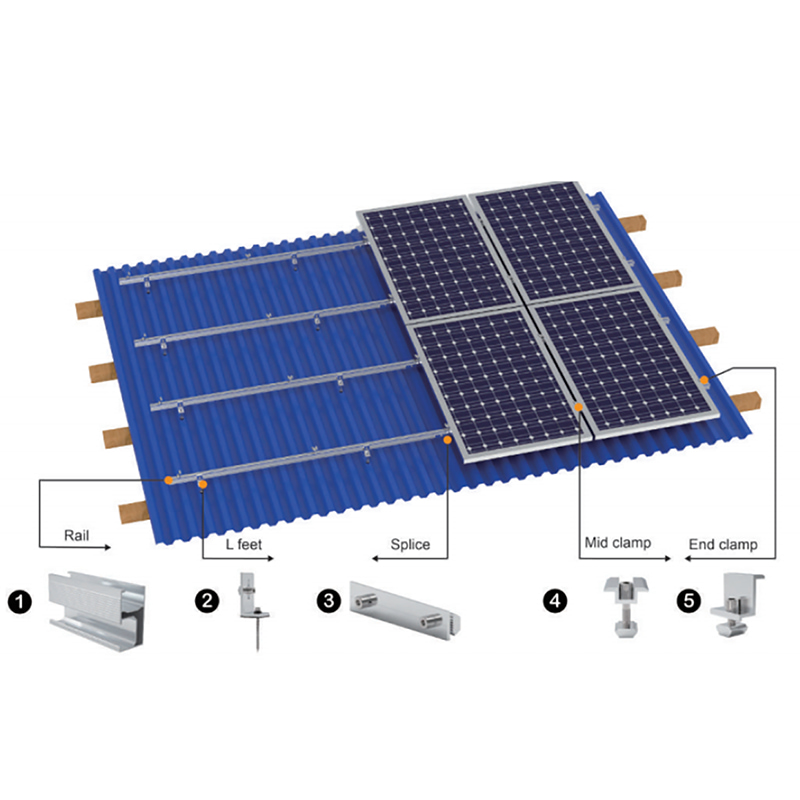

Solar Mounting System

* Pitched tiled/ flat roof mounting/ ground /carport mounted structure


* Mid-clmaping and end-clamping and all accessories.

* Hot-dip galvanized carbon steel or aluminum alloy

* Compatible with all sizes of solar modules

* 10 years warranty



Solar Cable (DC & AC )

* PV1-F 1*4mm2 & PV1-F1*6mm2, red & black

* Tinned copper wire

* AC 0.6/1.0KV DC 1.0KV

* 100m per roll or 200m per roll

* 3 years warranty.



1. Specifications of solar panels-Jinko 625-650W N type Topcon

JKM625-650N-66HL4M-BDV
Specifications(STC)
Maxlmum Power-Pmax [Wp]
625
630
635
640
645
650
Maxlmum Power Voltage-Vmp [V
40.88
41.02
41.16
41.30
41.44
41.58
Maximum Power Current-Imp [A]
15.29
15.36
15.43
15.50
15.57
15.64
Open-circult Voltage-Voc [M
49.28
49.48
49.68
49.88
50.88
50.28
Short-cIrcult Current-Isc [A]
16.14
16.20
16.26
16.32
16.38
16.44
Module Efficlency STC [%]
23.14
23.32
23.51
23.69
23.88
24.06
Power Tolerance
0~+3%
Temperature Coefficlents
of Pmax
-0.29 %/C
Temperature Coefficlents
of Voc
-0.25%/℃
Temperature Coeffliclents
of Isc
0.045%/℃
STC:Iradlance 1000W/m²,Cell Temperature 25℃,AM=1.5

STC: Standard Test Condition (STC)：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
Nominal Module Operating Temperature (NOCT)：Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s.

2. Specifications of Growatt High-Voltage On-grid Inverter
- MID 25-40KTL3-X



Datasheet
MID 25KTL3-X1
MID 30KTL3-X
MID 33KTL3-X
MID 36KTL3-X
MID 40KTL3-X
Input data (DC)
Max. recommended PV power(for module STC)
37500W
45000W
49500W
54000W
60000W
Max. DC voltage
1100V
Start voltage
250V
Nominal voltage
600V
MPPT voltage range
200-1000V
No. of MPP trackers
3
3
3
4
4
No. of PV strings per MPP tracker
2
Max. input current per MPP tracker
26A
Max. short-circuit current per MPP tracker
32A
Output data (AC)
AC nominal power
25000W
30000W
33000W
36000W
40000W
Max. AC apparent power
27700VA
33300VA
36600VA
39600VA
44000VA
Nominal AC voltage(range*)
220V/380V, 230V/400V (340-440V)
AC grid frequency(range*)
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
40A
50.5A
55.5A
60.0A
66.6A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
3W+N+PE
Efficiency
Max.efficiency
98.8%
European efficiency
98.5%
MPPT efficiency
99.9%
Protection devices
DC reverse polarity protection
Yes
DC switch
Yes
AC/DC surge protection
Type III / Type III
Insulation resistance monitoring
Yes
AC short-circuit protection
Yes
Ground fault monitoring
Yes
Grid monitoring
Yes
Anti-islanding protection
Yes
Residual-current monitoring unit
Yes
AFCI protection
Optional
General data
Dimensions (W / H / D)
580/435/230mm
Weight
29.5kg
29.5kg
29.5kg
30.5kg
30.5kg
Operating temperature range
–25°C ... +60°C
Nighttime power consumption
< 1W
Topology
Transformerless
Cooling
Smart air cooling
Protection degree
IP66
Relative humidity
0-100%
Altitude
4000m
DC connection
H4/MC4(Optional)
AC connection
Cable gland+OT terminal
Display
OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN
Yes/Yes/Optional/Optional/Optional /Optional
Warranty: 5 years / 10 years
Yes /Optional

Package and Delivery

  • #

  • #

  • #




  • #

  • #

  • #


Project





Our Company

Hefei Pinergy Solar Technology Co.,Ltd was established in 2016, a professional and leading manufacturer of quality solar modules. PNG SOLAR is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. JinKo, JA, GCL, Sungrow and BYD all sit here . PNG SOLAR has been certified by Alibaba several years ago. The business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.

3 production lines with annual capacity 1.2GW facilitate the lead production time .
Sophisticated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales vloume with USD 1.5 billion. And listed in the top 5 producer and exporter in our county.
For residential and commercial solar energy system, including on-grid, off-grid and hybrid solar energy system. PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul.

We are Official agent of LONGi, JinKo, JA solar and etc.

Our principles: Integrity, Win-Win, Innovation !

Exhibition

  • #
    SNEC in 2024
  • #
    Dubai in 2025
  • #
    Canton Fair in 2026
